Product Title: 4K x 2K Video Audio Extractor HDMI-Compatible to 3.5MM Audio Converter
This 4K x 2K HDMI-compatible audio extractor is designed to not only provide high-quality images on your HDTV, but also to extract audio from HDMI-compatible sources. It can extract the digital audio signal embedded in HDMI-compatible sources and convert it to 3.5mm analog audio output and SPDIF output simultaneously. The SPDIF output supports both 2CH audio and 5.1CH audio, including Dolby Digital 5.1CH and DTS 5.1CH.
Specification:

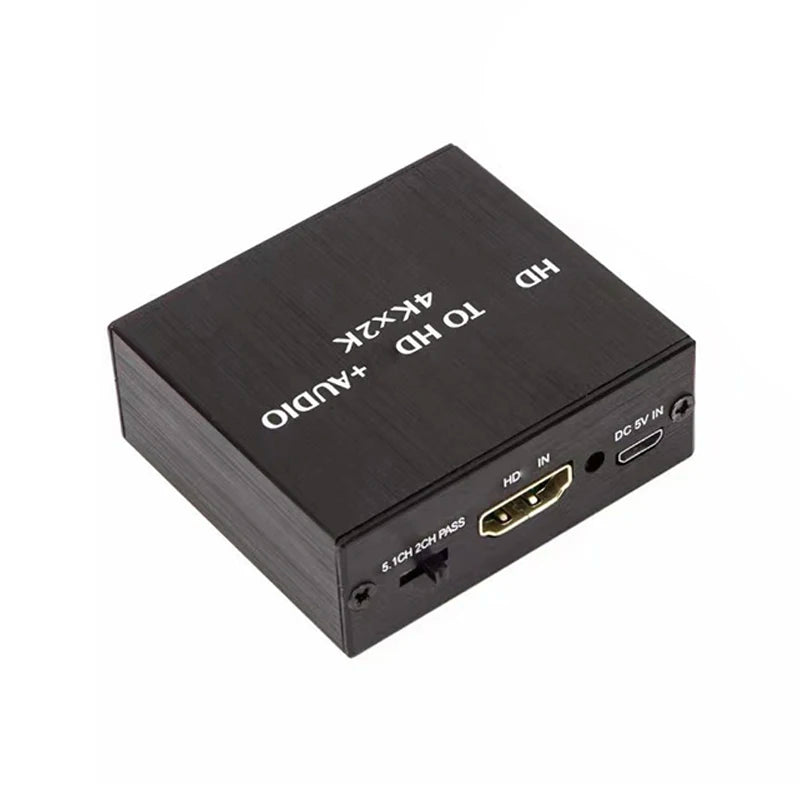

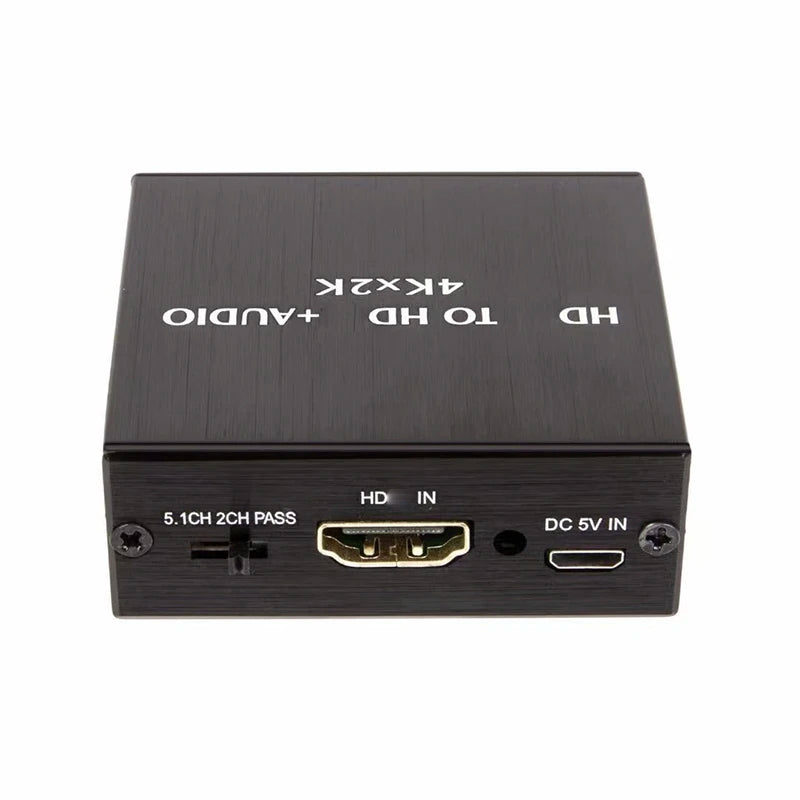

Input Port: 1 x HDMI-compatible IN, 1 x Micro USB Power Port, 3 x EDID Audio (Pass/2CH/5.1CH)

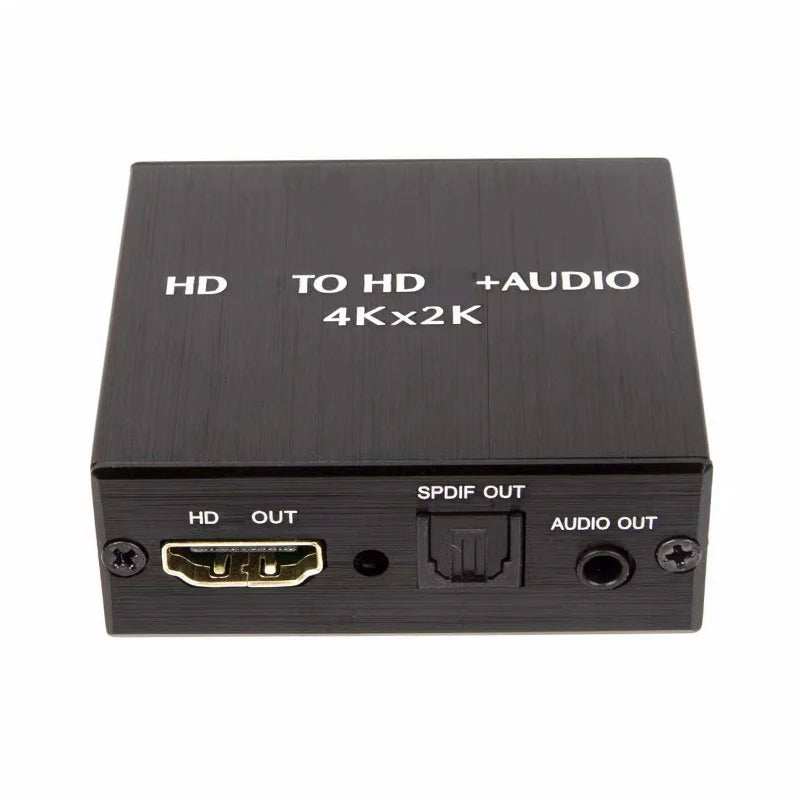

Output Port: 1 x HDMI-compatible OUT, 1 x SPDIF (Optical), 1 x 3.5mm Jack
HDMI-compatible Resolution: 4K x 2K, 24/50/60fs/1080P/1080i/720p/576p/576i/480p/480i
Support Video Color Format: 24bit/deep color 30bit, 36bit
Max Bandwidth: 225MHz
Max Baud Rate: 6.75Gbps
Max Working Current: 190mA

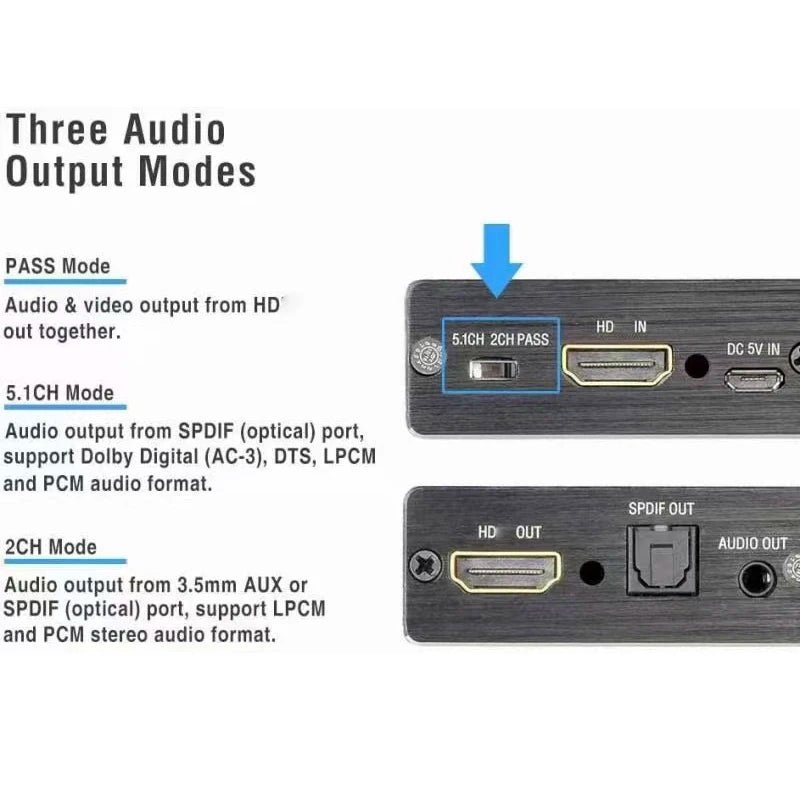

Three Switching Audio EDID Settings:
Pass: HDMI-compatible pass mode. The audio and video can be converted from the HDMI-compatible output. SPDIF and L/R will not output any sound.
2CH Mode: Extract the digital 2CH PCM stereo audio signal from the HDMI-compatible input and output stereo audio via HDMI-compatible/SPDIF and L/R.
5.1CH Mode: Extract 5.1 Dolby Digital/DTS and output via HDMI-compatible/SPDIF.
